Touch Screen Digital Auto Turret Vickers Hardness
Tester with Mass Data Storage
Model: HVS-5ATHY
Technical Data Download: iqualitrol Vickers Hardness Tester HVS-5ATHY
Product Description:
1, iqualitrol HVS-5/10/3050ATHY touch screen digital display automatic turret Vickers hardness tester, using 8-inch touch screen and high-speed ARM processor, intuitive display, friendly human-computer interaction, easy operation; fast calculation speed, huge database storage , the data is automatically corrected, and a data line report is provided;
2, The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;
3, Equipped with automatic turret function, high-resolution measurement and observation objective lens, combined with high-definition digital micrometer eyepiece with built-in length encoder, it realizes one-key measurement of indentation diagonal line, eliminating human operation interference and reading errors;
4, Convenient operating system, which can automatically convert the unit of the full hardness scale;
The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;
5, With software hardness value correction function, the hardness value can be directly corrected within a certain range;
With database function, the test data can be automatically grouped and saved, each group can save 10 data, and can save more than 2000 data;
6, It has the function of hardness value curve display, which can directly display the change of hardness value;
Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;
7, Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;
The accuracy complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.
Technical Specifications:
| Model | HVS-5/10/30/50ATHY |
| Range of Measurement | 5-5000HV |
| Test Force | Loading Mode | Weight Loading |
| HVS-5ATHY | 0.3,0.5,1.0, 2.0,3.0,5.0kgf |
| HVS-10ATHY | 0.3,0.5,1.0, 3.0,5.0,10kgf； |
| HVS-30ATHY | 0.3,0.5,1.0, 5.0,10.0,30.0kgf |
| HVS-50ATHY | 1.0,5.0,10.0, 20.0,30.0,50.0kgf. |
| Data Entry Mode | AUTOMATIC |
| Turret Mode | AUTOMATIC |
| Maximum Height of Specimen | 200mm |
| Depth Throat | Distance between Indenter Center and Wall: 130mm |
| Objective | HVS-5/10/30ATHY serial | 10×,40× | HVS-50ATHY | 10×,20× |
| Magnifications | 100×,400× | 100×,200× |
| Eyepiece Measure Resolution | 0.025μm | 0.1μm |
| Hardness Resolution | 0.1HV |
| Power Supply | AC 220V,50Hz |
| Outline Dimension | 620*330*650mm |
| Weight | 75kg |
Accessories Box:
| Micrometer Eyepiece | One PC | The Small Anvil | One PC |
| The Big Anvil | One PC | Diamond Vickers Indenter | One PC |
| V-type Anvil | One PC | Standard Vickers Hardness Block | Two Blocks |
|
|

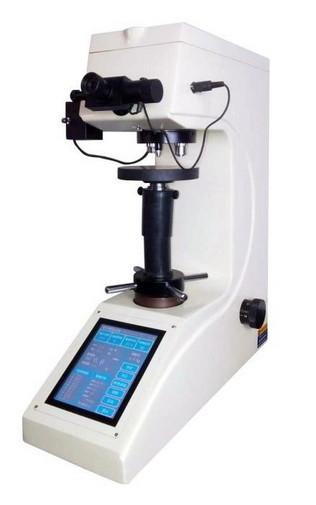

Touch Screen Digital Auto Turret Vickers Hardness Tester with Mass Data Storage Images
|
